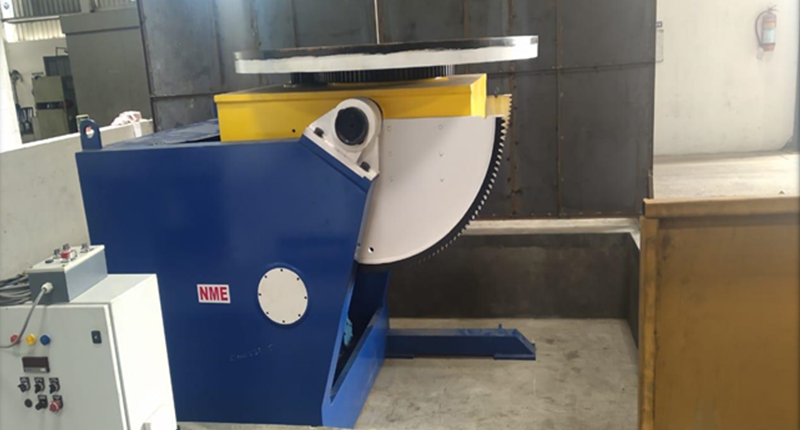

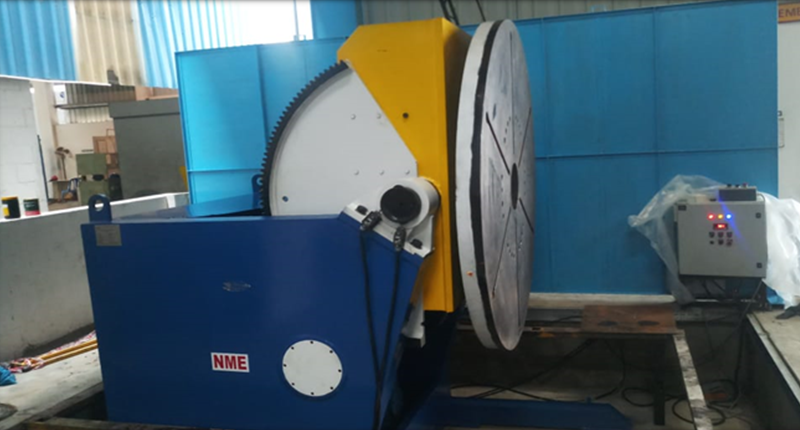

10 Ton Capacity Welding Positioner
10 Ton Capacity Welding Positioner

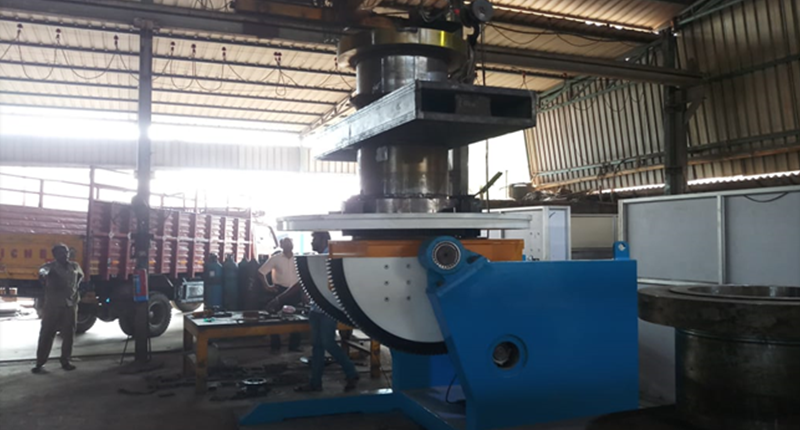

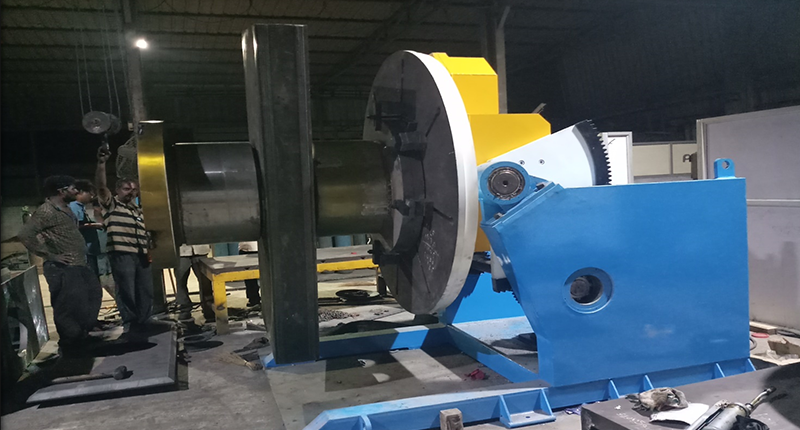

15 Ton Capacity Welding Positioner
15 Ton Capacity Welding Positioner
5 Ton Capacity Welding Positioner
5 Ton Capacity Welding Positioner

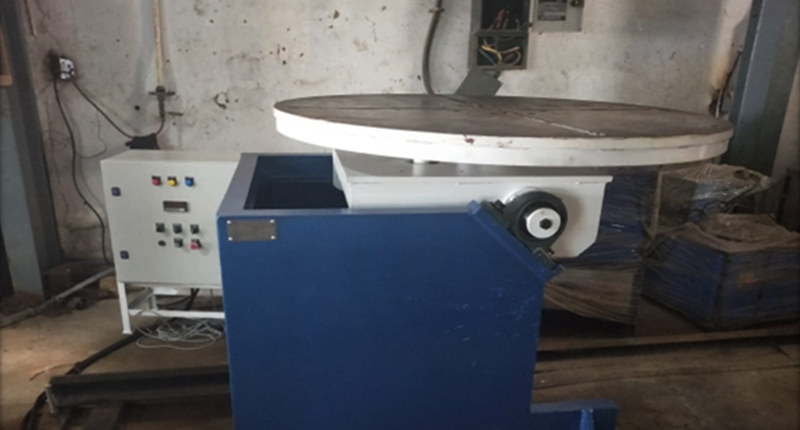

2 Ton Capacity Welding Positioner
2 Ton Capacity Welding Positioner
1 Ton Capacity Welding Positioner
1 Ton Capacity Welding Positioner

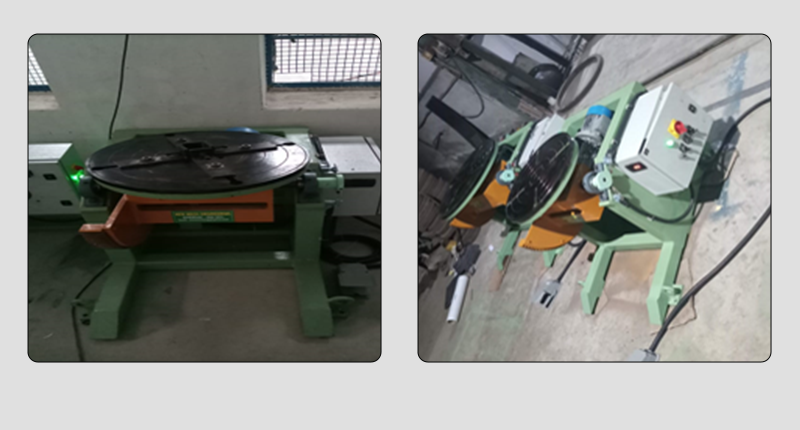

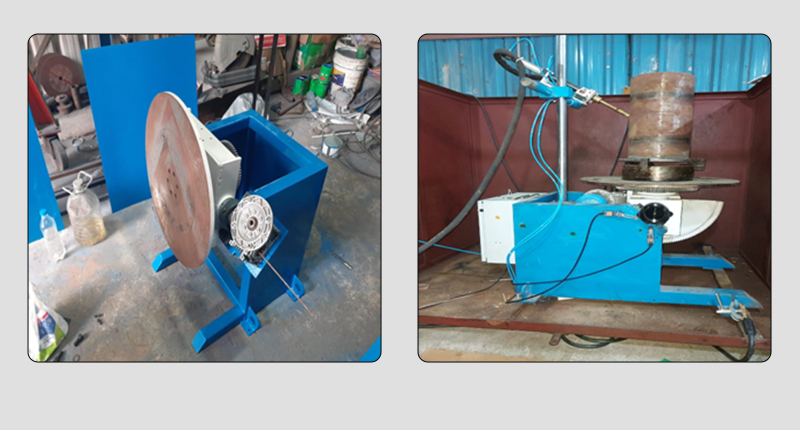

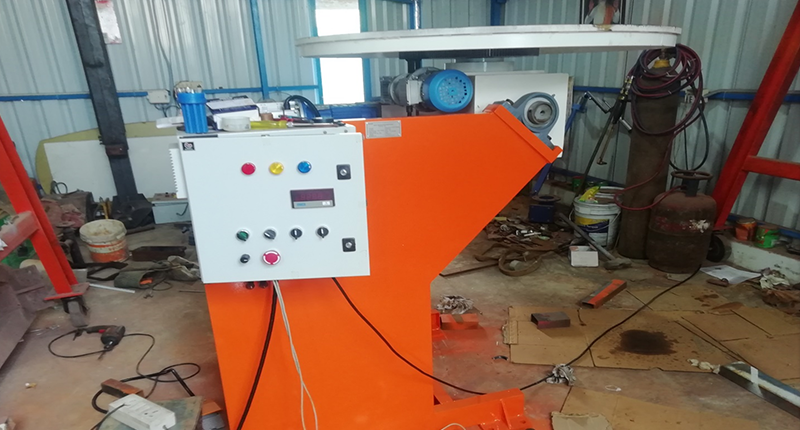

Various Sizes of Welding Positioner
Various Sizes of Welding Positioner
Various Sizes of Welding Positioner
NME offer welding positioners are designed to position the job in the optimal welding position. NME supply small to heavy work load, with variable speed control, and tilting capacity. Control System forward/off/reverse switch control, plug for optional foot switch, a robust AC/DC gear head motor, and fuse for motor overload. Ranges from Positioners are 100kgs to 20Ton.
| Model | NME 10 Kgs | NME 50 Kgs | NME 100 Kgs | NME 300 Kgs | NME 500 Kgs | NME 1000 Kgs | NME 3000 Kgs | NME 5000 Kgs | NME 10000 Kgs | NME 15000 Kgs | NME 20000 Kgs |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Load Capacity – (Kg.) | 10 | 50 | 100 | 300 | 500 | 1000 | 3000 | 5000 | 10000 | 15000 | 20000 |
| Table Rotation Speed – (Rpm) |
0.04-0.4 | 0.04-0.4 | 0.02-0.2 | 0.01-0.1 | 0.05-0.5 | 0.05-0.5 | 0.05-0.5 | ||||
| Table Diameter – mm | 180 | 300 | 350 | 450 | 650 | 1000 | 1200 | 1500 | 2000 | 2000 | 2000 |
| Degree of Tilt | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 | 0-90 | 0-110 | 0-110 | 0-110 | 0-110 | 0-110 |
| Turning Motor (KW) | 0.25 to 5 (or Suitable) | ||||||||||
| Tilting Motor (KW) | Manual | Motorized | |||||||||
| Max Centre of Gravity – Mm |
100 | 100 | 100 | 100 | 100 | 150 | 200 | 200 | 200 | 200 | |
| Eccentricity – mm | 75 | 100 | 100 | 100 | 150 | 200 | 200 | 200 | 200 | 200 | |
| Input Voltage | 3 phase AC 415 V, 50 Hz | ||||||||||
