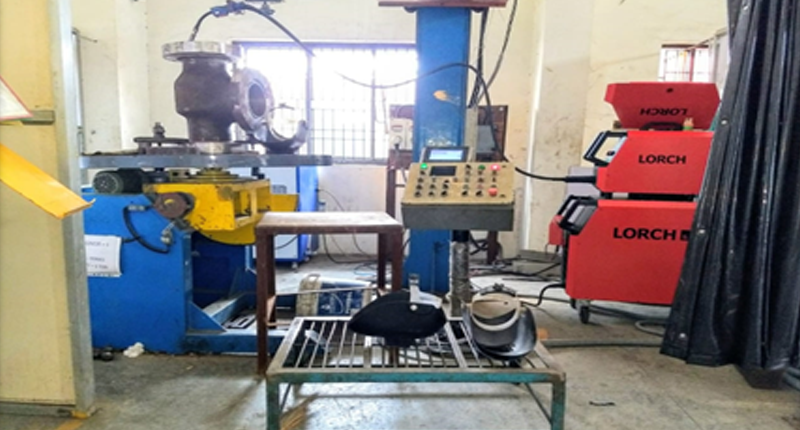

Hot Wire Tig Welding Machine - Size 6M x 6M Column and Boom Welding
Hot Wire Tig Welding Machine - Size 6M x 6M Column and Boom Welding

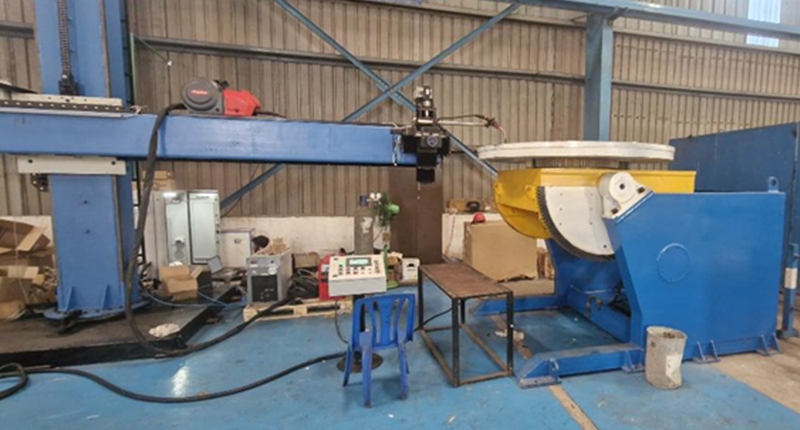

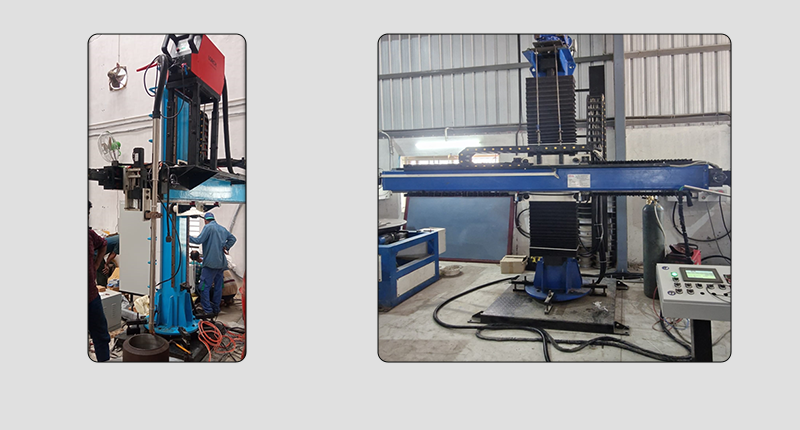

3x3 Column and Boom Welding Manipulator
3x3 Column and Boom Welding Manipulator
We offer Column and Boom systems process linear and circular welding processes which are hard to be done by an operator in heavy conditions. It is ideal and easy to use for both Hot Wire Tig Welding , MIG/MAG and submerged Arc welding (SAW Process),with very precise horizontal and vertical guides, positioning is always very precise without any vibration and with ability of 360 degree of the column, the welding of different positioned pieces can be easily done. Ranges from Column & Boom Stroke are 1.5mtrs X 1.5Mtrs to 6Mtrs X 6Mtrs
| Model | NME Light Duty |
NME Medium Duty |
NME Heavy Duty |
|||
|---|---|---|---|---|---|---|
| Boom Lifting (mm) | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Boom Traveling (mm) | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Boom Lifting Speed (mm/Min) | 750 | 750 | 750 | 750 | 750 | 750 |
| Boom Travel Speed (mm/Min) | 150-1250 | 150-1250 | 150-1250 | 150-1250 | 150-1250 | 150-1250 |
| Max.Load in Kg | 100 | 100 | 200 | 200 | 300 | 300 |
